1005 CIRCAL©- Hand Drawn 12kg.
12kg

Strong and discreet, the 1005 (4mm) track is an elegant, hand drawn track with a unique advantage due to its compact size. It is small enough to allow a tilt and turn window to open when fitted within the window reveal. Available in four popular colours with coordinating nylon fittings

CWF 1005 CIRCAL©

Compact track for tilt and turn windows

Made from recycled aluminium with a low carbon footprint

The 1005 (4mm) is a compact hand drawn track for tilt and turn windows. It is slim and strong, can be bent and carries up to 12kg, while still letting the window open fully. It is made from 75% recycled aluminium, with a carbon footprint of just 2.3kg CO2 per kg of aluminium, around 87% below the global average. It comes in white with matching nylon fittings.



  • Slim hand drawn track


  • For domestic or contract projects


  • White track with matching fittings and covers


  • Carries up to 12kg


  • Made from 75% recycled aluminium


  • Very low CO2 footprint


  • Strong and discreet


  • Can be bent

Slim hand drawn track

Slim and neat

The 1005 has a slim profile that fits neatly in the window reveal, so it works well with tilt and turn windows. It comes in white with matching fittings.



BUY NOW

Product Description:


Applications : Domestic, Contract
Material : Aluminium alloy 6060/T6
Accessories : Plastic/metal
Track width : 6 mm

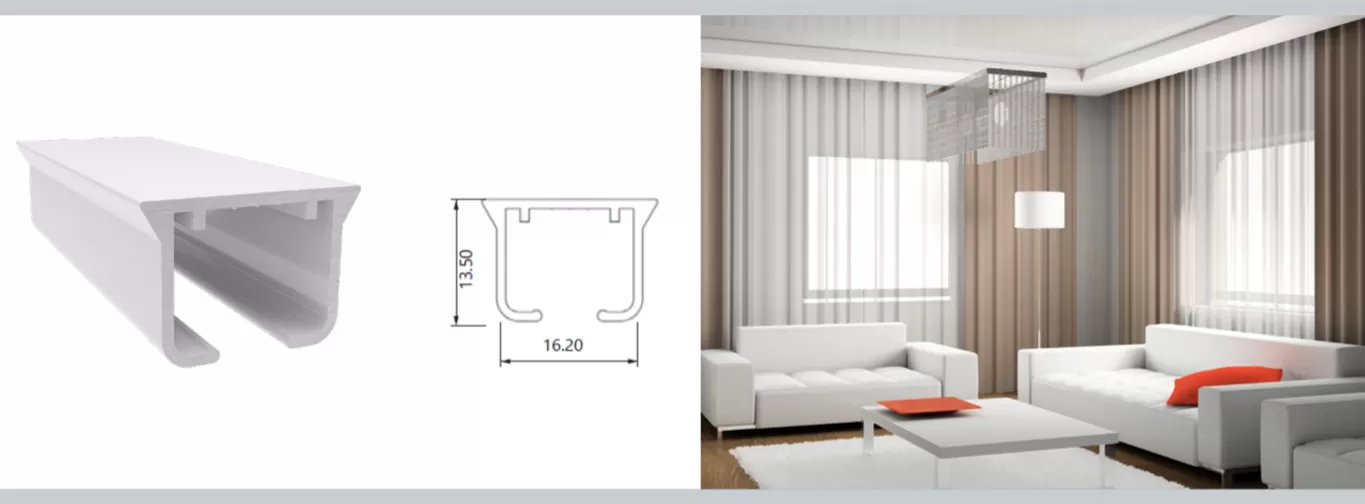

Ext. dimensions: 16.2mm x 13.5mm
Length : 600cm
Thickness : 1.0 -1.2 mm
Load : Maximum 15kg*
Bending : 11 cm radius
Recommended glider : 5721, 5730, 5735, 6025

A versatile track for Irish designers and architects



buy Now


contact us

Our slimline hand drawn tracks, from the best-selling 2005 and 1005 to our motorised options, suit both residential and commercial interiors. They are strong, flexible and made to measure for architects and designers across Ireland.

Circle Sustainable Curtain Solutions

European EcoTracks

Sustainable aluminium

Hydro CIRCAL with minimum of 75% of Post-Consumer Scrap



Certified Eco-friendly

Traceable & Low CO2 Footprint (DNV GL Certified)



Circular Economy Tracks

Green Energy Extrusion powered by Watermills in Europe

F.A.Q.

You have questions, We have Answers.

It is slim and fits discreetly in the window reveal, so tilt and turn windows can still open fully with the curtains in place.

Yes. It is made from at least 75% recycled aluminium.

Yes. It is made from recycled aluminium using renewable energy.

About 2.3kg of CO2 per kg of aluminium, around 87% lower than the global industry average of 18kg.

Yes. The 1005 can be bent for curved windows.

Up to 12kg, which covers a wide range of curtain fabrics.

PDF Flipbook

Technical Information

Bends

Applications:

Domestic, Contract
Minimum Width:

70 cm
Maximum Weight Capacity:

7.5kg
Control :

Hand drawn
Track width:

4 mm
Thickness:

1.0 -1.2 mm
Bend options:

Yes
Bending:

11 cm radius
Cord Options:

No
Ceiling mount:

Yes
Wall mount:

Yes (with modification)
Material:

Aluminium alloy 6060/T6
Colours:

White
Accessories:

Plastic/metal
Length:

600 cm
Load:

Maximum 12kg*
Recommended glider :

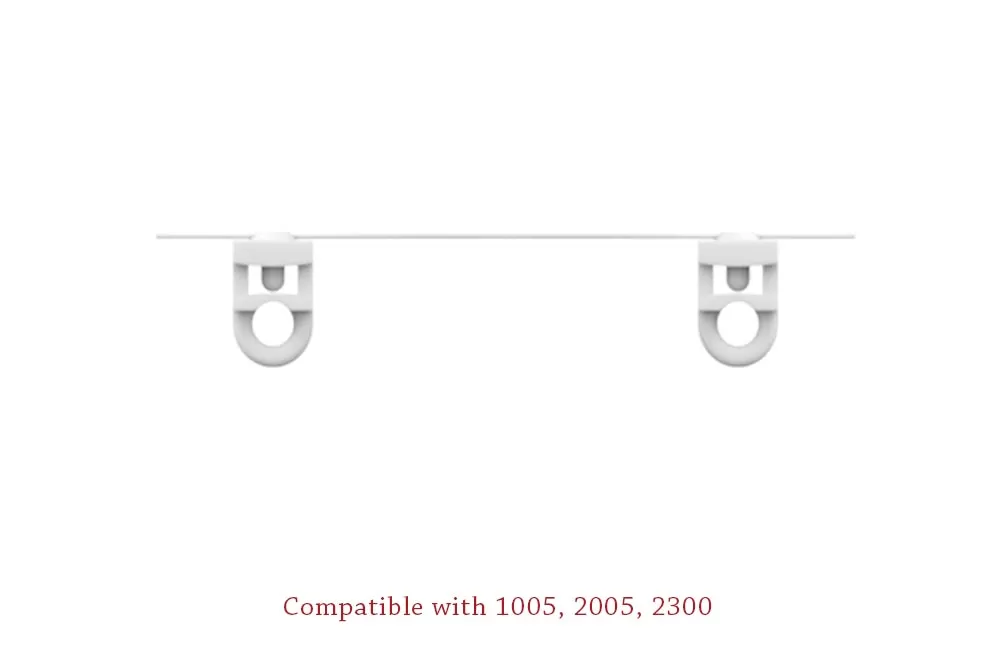

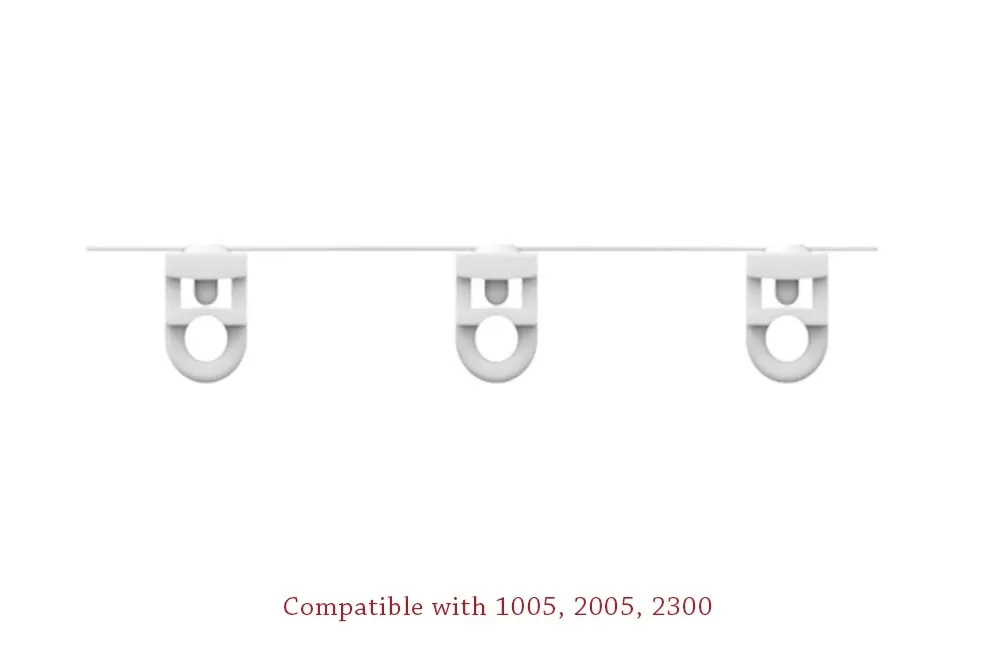

4050 with
silicone, 4041, 4042
1005 Standards (unless specified):
• Split draw
• Ceiling fix bracket
• Nylon glider
Ext. dimensions:

10.5mm x 14.5mm
