0521 CIRCAL© – Hand Drawn Curtain Track System – 10kg

Hand drawn, slimline contract track suitable for sheers and light to medium weight curtains. Pre-drilled screw holes within channel allow for a discreet, direct ceiling mount using countersunk (3×30 Pan Head) screws. Ceiling bracket or wall bracket options also available. This track can be direct ceiling mounted, without brackets, through pre-drilled screw hole within channel. Pre-drilled holes every 48cm.

CWF 0521

Slimline hand drawn contract track

Made for ceiling fixing

The 0521 is a slimline hand drawn contract track that fixes discreetly to the ceiling through pre-drilled holes every 48cm. It suits sheers and light to medium curtains up to 10kg. It comes in white or silver and can be fixed directly to the ceiling, to the wall or on brackets.

It is made from Circal aluminium, which contains at least 75% recycled aluminium and has a very low carbon footprint. It is extruded in Europe using hydro-powered green energy.

Slimline hand drawn track

Slim and easy to install


The 0521 is slim and discreet, with pre-drilled holes for ceiling fixing. It carries sheers and light to medium curtains up to 10kg, in white or silver, for homes and commercial spaces.

Product Description:


Applications : Domestic, Contract
Material : Aluminium alloy 6060/T6
Accessories : Plastic/metal
Track width : 6 mm

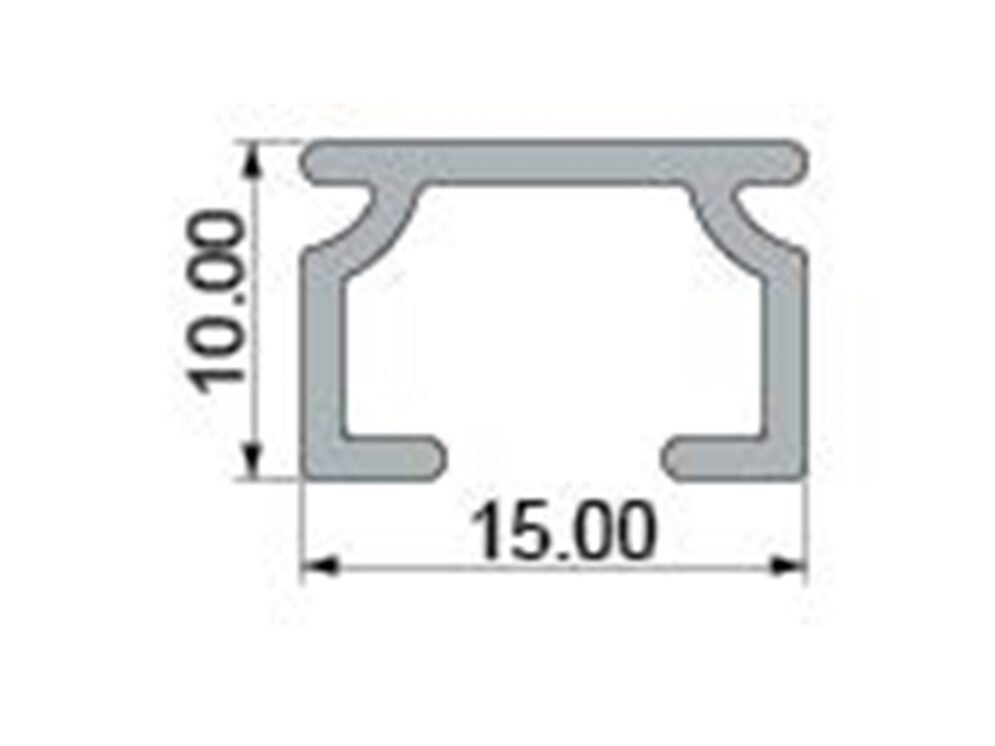

Ext. dimensions: 15 mm x 10 mm
Length : 600cm
Thickness : 1.0 -1.2 mm
Load : Maximum 10kg*
Recommended glider : 5721 with
silicone, 5730, 5735

A slim, practical track for Irish interiors

For architects and designers, the 0521 is a slim, discreet track for ceiling fixing, suited to sheers and light to medium curtains. It comes in white or silver for residential and commercial projects.

Circle Sustainable Curtain Solutions

European EcoTracks



Sustainable aluminium

Hydro CIRCAL with minimum of 75% of Post-Consumer Scrap



Certified Eco-friendly

Traceable & Low CO2 Footprint (DNV GL Certified)



Circular Economy Tracks

Green Energy Extrusion powered by Watermills in Europe

F.A.Q.

You have questions, We have Answers.

It has a slim profile and fixes discreetly to the ceiling, so it suits both commercial and residential projects.

It can be fixed directly to the ceiling through the pre-drilled holes in the channel, or fitted with wall and ceiling brackets.

Sheers and light to medium curtains, up to 10kg.

No. The 0521 is for straight runs only and cannot be bent.

Yes. It works with wave curtains.



PDF Flipbook

Technical Information

Applications:

Contract

Control :

Hand drawn

Track width:

6 mm

Thickness:

1.0 -1.2 mm

Bend options:

No

Cord Options:

No

Ceiling mount:

Yes

Wall mount:

Yes (with modification)

Material:

Aluminium alloy 6060/T6

Colours:

White, Silver

Accessories:

Plastic/metal

Length:

600 cm

Load:

Maximum 10kg*

Ext. dimensions:

15 mm x 10 mm
